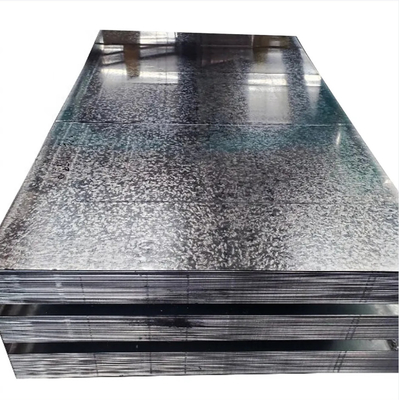

円形波状の電磁板 厚さ1.2mm JIS G3302 SGCC 亜鉛塗装 熱浸し

円形波状の電磁板 厚さ1.2mm JIS G3302 SGCC 亜鉛塗装 熱浸し

円形波状の電磁板 厚さ1.2mm JIS G3302 SGCC 亜鉛塗装 熱浸し
Flat corrugated galvanised sheets 1.2mm Thickness JIS G3302 SGCC Zinc Coated Hot Dipped
円形波状の電磁板 厚さ1.2mm JIS G3302 SGCC 亜鉛塗装 熱浸し 円形波状の電磁板 厚さ1.2mm JIS G3302 SGCC 亜鉛塗装 熱浸し

大画像 :  円形波状の電磁板 厚さ1.2mm JIS G3302 SGCC 亜鉛塗装 熱浸し

商品の詳細:
起源の場所: 江苏,中国
ブランド名: JIANGSU LIANZHONG
証明: ISO, SGS, ROHS
Model Number: DX51D, DX52D, DX53D, DX54D, Q195-Q345
お支払配送条件:
最小注文数量: 1 トン
価格: negotiable
Packaging Details: Standard Waterproof Package
受渡し時間: 7~15 日
Payment Terms: TT/LC/Western Union
Supply Ability: 5000 Tons/Month

円形波状の電磁板 厚さ1.2mm JIS G3302 SGCC 亜鉛塗装 熱浸し

説明
MOQ: 1 TON Standard: GB, ASTM, JIS
Product Name: Galvanized Steel Sheet Coil ID: 508 610mm
Spangle Type: Regular Spangle Package: Standard exporting package
取引期間: CIF/CFR/FOB/EXW
ハイライト:

1.2mmは鋼板に電流を通した

,

熱浸したゴールドシート

,

JIS G3302は鋼板に電流を通した

Galvanized Steel Sheet Flat Corrugated 1.2mm Thickness JIS G3302 SGCC Zinc Coated Hot Dipped

Product Description:



Galvanized patterned sheet is a beautiful, easy to process, and cost-effective sheet material suitable for different construction parties and industry needs. Its pattern has anti slip effect and good strengthening performance, which can save steel and ensure cost-effectiveness. Wide application range, suitable for industries such as transportation, construction, decoration, mechanical manufacturing, shipbuilding, etc



円形波状の電磁板 厚さ1.2mm JIS G3302 SGCC 亜鉛塗装 熱浸し 0



円形波状の電磁板 厚さ1.2mm JIS G3302 SGCC 亜鉛塗装 熱浸し 1

Surface:


円形波状の電磁板 厚さ1.2mm JIS G3302 SGCC 亜鉛塗装 熱浸し 2円形波状の電磁板 厚さ1.2mm JIS G3302 SGCC 亜鉛塗装 熱浸し 3



Technical Parameters:


l
Technical Standard
EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653


Steel Grade
Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD,
S550GD; SGCC, SGHC, SGCH, SGH340, SGH400,SGH440,SGH490,SGH540,
SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230),
SQ CR22 (255), SQ CR40 (275), SQ CR50 (340),SQ CR80(550), CQ, FS, DDS,
EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340),
SQ CR80 (550); or Customer’s Requirement
Type
Coil/Sheet/Plate/Strip
Thickness
0.12-6.00mm,or customer's requirement
Width
600mm-1500mm, according to customer's requirement
Type of Coating
Hot Dipped Galvanized Steel(HDGI)
Zinc Coating
30-275g/m2
Surface Treatment
Passivation(C), Oiling(O), Lacquer sealing(L), Phosphating(P), Untreated(U)
Surface Structure
Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS)
Quality
Approved by SGS,ISO
ID
508mm/610mm
Coil Weight
3-20 metric ton per coil
Package
Water proof paper is inner packing,galvanized steel or coated steel sheet is outer
packing , side guard plate,then wrapped by seven steel belt.or according to
customer's requirement
Export market
Europe, Africa, Central Asia, Southeast Asia, Middle East, South America,
North America, etc

Applications:



Galvanized Steel Sheet is a hot dipped steel sheet with excellent construction material, roofing, and appliance material. It has high tensile strength ranging from 270-500 MPa and is highly durable and corrosion resistant. With a thickness ranging from 0.3 to 3mm, this galvanized steel sheet is ideal for automobile, construction, and appliance industries. It is available in DX51D, DX52D, DX53D, DX54D, and Q195-Q345 models. The minimum order quantity is 1 ton, and the packaging is done with standard waterproof packaging. The delivery time is 7-15 days, and the payment terms are TT/LC/Western Union.



円形波状の電磁板 厚さ1.2mm JIS G3302 SGCC 亜鉛塗装 熱浸し 4

Process:



GI sheet zero spangle z100 zinc coated steel sheet 26 gauge galvanized steel sheet





Support and Services:



円形波状の電磁板 厚さ1.2mm JIS G3302 SGCC 亜鉛塗装 熱浸し 6



Packing and Shipping:



Galvanized steel sheet is packaged and shipped in sheets or coils in accordance with customer requirements. The sheets are usually wrapped in plastic film and then strapped around the outside with metal bands. The coils are usually placed on wooden pallets or steel trays and then strapped around the outside with metal bands.

When shipping galvanized steel sheets, it is important to use the correct packaging. The sheets should be protected from physical damage and moisture during shipping. The packaging should also be able to withstand long-term exposure to the elements.

The packaging materials should be selected according to the size and weight of the sheets. The size and weight of the sheets should also be taken into account when determining how much packaging material is needed.



SGCC SGCD SGCH Galvanised Steel Sheet DX51D DX52D Galvalume Galvanized Steel Sheet Hot Dip Galvanized Steel Plate Price Cheap円形波状の電磁板 厚さ1.2mm JIS G3302 SGCC 亜鉛塗装 熱浸し 8



FAQ:



Q: How to get samples?

A: The catalog and most samples have been prepared for you. It takes about 5-7 days for customized samples. Please contact us for more support.



Q: What is the minimum order quantity?

A: If you want to order a small number of orders or trial orders, please feel free to contact us, we can meet your requirements.



Q: Can you OEM or ODM?

A: Yes, we have a strong development team. Products can be produced according to your requirements.



Q: How long can you guarantee this product/complete?

A: The color is guaranteed for more than 10 years. The quality certificate of the original materials can be provided.



Q: Which payment method do you accept?

A: We accept payment by wire transfer or letter of credit. In addition, you can also transfer money to our bank account, Western Union or PayPal.



Q: What is the average delivery time?

A: For samples, the delivery time is about 5-7 days. For mass production, the delivery time is 10-25 days. In any case, we will try our best to meet your needs.
